ALP NO DIMENSION Ød ØD b C Ød1 Øds S
A105 020-011 20X11X13,5X2,1 11 20 13.5 4 19 17 2.1
A105 025-015 25X15X16,4 15 25 16.4 4 23.5 21.45 6.35
A105 025-015/1 25X15X12,5X4 15 25 12.5 4 24 22 4
A105 025-016 25X16X13,5X2,1 16 25 13.5 4 24 22 2.1
A105 025-017 25X17X10X4 17 25 10 4 24 22 4
A105 025-017/1 25X17X13,5X3,2 17 25 13.5 4 24.4 21 3.2
A105 030-017 30X17X15,4 17 30 15.4 4 28.5 26.5 6.35
A105 030-021 30X21X13,5 21 30 13.5 4 29 27 2.1
A105 030-022 30X22X13,5 22 30 13.5 4 29.4 26 3.2
A105 032-022 32X22X16,4 22 32 16.4 4 30.5 30.5 6.35
A105 032-022/1 32X22X15,5 22 32 15.5 4 31 28 2.6
A105 032-022/2 32X22X12,5 22 32 12.5 4 31 29 4
A105 032-024 32X24X15,5 24 32 15.5 4 31 28 3.1
A105 032-024/1 32X24X10X4 24 32 10 4 31 29 4
A105 035-025 35X25X16,4 25 35 16.4 4 33.5 31.4 6.35
A105 038,1-25,4 38,1X25,4X15,87 25.4 38.1 15.87 4 37.08 34.54 6.35
A105 038,1-28,57 38,1X28,57X11,10 28.57 38.1 11.1 5 36.8 33.63 3.81
A105 040-024 40X24X18,4 24 40 18.4 5 38.5 35.4 6.35
A105 040-026 40X26X15,5 26 40 15.5 4.5 39 36 2.6
A105 040-030 40X30X16,4 30 40 16.4 4 38.5 35.4 6.35
A105 040-030/1 40X30X12,5 30 40 12.5 4 39 37 4
A105 040-030/2 40X30X12,3 30 40 12.3 4 39 36 4
A105 040-030/3 40X30X12,5X4X36 30 40 12.5 4 39 36 4
A105 040-032 40X32X15,5 32 40 15.5 4 39.4 36 3.2
A105 040-032/1 40X32X10X4 32 40 10 4 39 37 4
A105 044,45-028,57 44,45X28,57X19,05 28.57 44.45 19.05 5 43.12 39.85 6.35
A105 045-029 45X29X18,4 29 45 18.4 5 43.5 40.4 6.35
A105 045-031 45X31X15,5 31 45 15.5 4.5 44 41 2.6
A105 045-035 45X35X16,4 35 45 16.4 4 43.5 40.4 6.35
A105 045-037 45X37X15,5X3,2 37 45 15.5 4 44.4 41 3.2
A105 050,8-34,92 50,8X34,92X19,05 34.92 50.8 19.05 5 49.48 46.23 6.35
A105 050,8-41,27 50,8X41,27X11,1X3,81 41.27 50.8 11.1 4 49.19 46.27 3.81
A105 050-034 50X34X20,5 34 50 20.5 5 49 46 3.1
A105 050-034/1 50X34X18,4 34 50 18.4 5 48.66 45.41 6.35
A105 050-035 50X35X20 35 50 20 5 48.5 46 1
A105 050-038 50X38X20,5 38 50 20.5 4 49.4 46 4.2
A105 050-040 50X40X12,5 40 50 12.5 4 49 47 4
A105 055-039 55X39X20,5 39 55 20.5 5 54 51 3.1
A105 055-039/1 55X39X18,4 39 55 18.4 5 53.65 50.37 6.35
A105 055-045 55X45X11 45 55 11 4 54 50.5 4
A105 055-045/1 55X45X12,5 45 55 12.5 4 54 52 4
A105 056-040 56X40X20,5 40 56 20.5 5 55 52 3.1
A105 057,15-41,27 57,15X41,27X19,45 41.27 51.15 19.45 5 55.8 52.55 6.35
A105 060,32-044,45 60,32X44,45X19,05 44.45 60.32 19.05 5 58.98 55.72 6.35
A105 060-044 60X44X20,5 44 60 20.5 5 59 56 3.1
A105 060-044/1 60X44X18,4 44 60 18.4 5 58.65 55.39 6.35
A105 060-048 60X48X20,5 48 60 20.5 4 59.4 56 4.2
A105 063,5-047,60 63,5X47,6X25,4 47.6 63.5 25.4 5 62.2 58.63 6.35
A105 063,5-047,62 63,5X47,62X19,05 47.62 63.5 19.5 5 62.12 58.9 6.35
A105 063,5-53,97 63,5X53,97X11,1 53.97 63.5 11.1 4 62.12 59.12 3.81
A105 063-047 63X47X20,5 47 63 20.5 5 62 59 3.1
A105 063-047/1 63X47X18,4 47 63 18.4 5 63.63 58.39 6.35
A105 063-047/2 63X47X19,4 47 63 19.4 5 61.5 58.39 6.35
A105 063-048 63X48X20 48 63 20 5 61.5 59 5
A105 063-051 63X51X20,5 51 63 20.5 4 62.4 59 4.2
A105 063-053 63X53X12,5 53 63 12.5 4 62 60 4
A105 065-049 65X49X20,5 49 65 20.5 5 64 61 3.1
A105 065-050 65X50X18,4 50 65 18.4 5 63.64 60.41 6.35
A105 066,67-050,80 66,67X50,80X19,05 50.8 66.67 19.05 5 65.27 62.1 6.35
A105 070-050 70X50X22,4 50 70 22.4 6 68.34 64.18 6.35
A105 070-054 70X54X20,5 54 70 20.5 5 69 66 3.1
A105 070-055 70X55X20 55 70 20 5 68.5 66 5
A105 070-058 70X58X20,5 58 70 20.5 4 69.4 66 4.2
A105 075-055 75X55X22,4 55 75 22.4 6 73.3 69.2 6.35
A105 075-059 75X59X20,5 59 75 20.5 5 74 71 3.1
A105 076,2-057,15 76,2X57,15X23,80 57.15 76.2 23.8 5 74.5 70.38 6.35
A105 076,2-057,15/1 76,2X57,15X31,75 57.15 76.2 31.75 5 74.5 69.55 6.35
A105 076,2-066,67 76,2X66,67X11,1 66.67 76.2 11.1 5 74.6 71.62 3.81
A105 080-060 80X60X22,4 60 80 22.4 6 78.3 74.15 6.35
A105 080-060/1 80X60X25 60 80 25 6 78 75 6.35
A105 080-062 80X62X22,5 62 80 22.5 5 79 76 3.6
A105 080-065 80X65X20 65 80 20 5 78.5 76 5
A105 080-066 80X66X22,4 66 80 22.4 4.5 79.4 76 5.2
A105 082,55-063,50 82,55X63,5X23,80 63.5 82.55 23.8 5 80.9 76.73 6.35
A105 085-065 85X65X22,4 65 85 22.4 6 83.3 79.15 6.35
A105 085-065/1 85X65X21,4 65 85 21.4 6 83.3 79.15 6.35
A105 088,9-69,85 88,9X69,85X30,15 69.85 88.9 30.15 5 87.29 82.16 6.35
A105 088,9-69,85/1 A105 088,9-69,85/1 69.85 88.9 23.81 5 87.22 83.08 6.35
A105 088,9-69,85/2 88,9X69,85X24,81X6,35 69.85 88.9 24.81 6.35 87.22 83.08 6.35
A105 090-070 90X70X22,4 70 90 22.4 6 88.3 84.15 6.35
A105 090-072 90X72X22,5 72 90 22.5 5 89 86 3.2
A105 090-072/1 90X72X22,5X3,6 72 90 22.5 5 89 86 3.6
A105 090-075 90X75X20 75 90 20 5 88.5 86 5
A105 090-076 90X76X22,4 76 90 22.4 4.5 89.4 86 5.2
A105 095-075 95X75X22,4 75 95 22.4 6 93.31 89.15 6.35
A105 095-081 95X81X22,4 81 95 22.4 4.5 94.4 91 5.2
A105 100-075 100X75X22,4 75 100 22.4 6 98 93.13 6.35
A105 100-080 100X80X25,4 80 100 25.4 6 98 95 6.35
A105 100-080/1 100X80X25 80 100 25 6 98 95 6.35
A105 100-080/2 100X80X35 80 100 35 6 97.51 92.61 9.52
A105 100-082 100X82X22,5 82 100 22.5 5 99 96 3.6
A105 100-085 100X85X20 85 100 20 5 98.5 96 5
A105 100-086 100X86X22,4 86 100 22.4 4.5 99.4 96 5.2
A105 101,6-82,55 101,6X82,55X23,81 82.55 101.6 23.81 5 100.07 95.76 6.35
A105 105-080 105X80X22,4 80 105 22.4 6 103 98.1 6.5
A105 110-085 110X85X22,4 85 110 22.4 6 108 103.1 6.35
A105 110-085/1 110X85X25,4 85 110 25.4 6 108 103.1 6.35
A105 110-090 110X90X35 90 110 35 6 107.51 102.6 9.52
A105 110-090/1 110X90X25,3X9,52 90 110 25.3 6 108.3 102.6 9.52
A105 110-090/2 110X90X25,4X6,35X104,1 90 110 25.4 6 108.3 104.1 6.35
A105 110-092 110X92X22,5 92 110 22.5 5 109 106 3.6
A105 110-095 110X95X20 95 110 20 5 108 105 5
A105 110-096 110X96X22,4 96 110 22.4 4.5 109.4 106 5.2
A105 115-090 115X90X22,4 90 115 22.4 6 113.02 108.1 6.35
A105 115-097 115X97X22,4 97 115 22.4 5 114 111 4.2
A105 115-097/1 115X97X22,5X3,6X111 97 115 22.5 5 114 111 3.6
A105 115-101 115X101X22,4 101 115 22.4 4.5 114.4 111 5.2
A105 120-095 120X95X22,4 95 120 22.4 6 118 113.1 6.35
A105 120-100 120X100X35 100 120 35 6 117.5 112.8 9.5
A105 120-106 120X106X22,4 106 120 22.4 4.5 119.4 116 5.2
A105 125-100 125X100X25,4 100 125 25.4 6 123 118.1 6.35
A105 125-100/1 125X100X45 100 125 45 6 122.33 116.82 12.7
A105 125-103 125X103X26,5 103 125 26.5 6 124 121 5.1
A105 125-105 125X105X25,4 105 125 25.4 6 123 120 6.35
A105 125-105/1 125X105X25X6,35 105 125 25 6 123 119.1 6.35
A105 125-108 125X108X26,5 108 125 26.5 5 124.4 121 7.2
A105 127-101,6 127X101,6X31,75 101.6 127 31.75 6 124.98 120.09 9.52
A105 130-105 130X105X25,4 105 130 25.4 6 128 123.1 6.35
A105 130-105/1 130X105X25,4X9,52X123,1 105 130 25.4 6 128 123.1 9.52
A105 130-105/2 130X105X25,4X9,52X122,6 105 130 25.4 6 127.5 122.6 9.52
A105 135-110 135X110X25,4X9,52 110 135 25.4 6 132.5 127.6 9.52
A105 135-110/1 135X110X25,4 110 135 25.4 6 133 128.1 6.35
A105 139,7-114,3 139,7X114,3X31,75/6,35 114.3 139.7 31.75 6 137.2 132.4 6.35
A105 139,7-114,3/1 139,7X114,3X31,75/9,52 114.3 139.7 31.75 6 137.2 132.4 9.52
A105 140-115 140X115X25,4X6,35X132,6 115 140 25.4 6 137.5 132.6 6.35
A105 140-115/1 140X115X25,4X9,52X132,6 115 140 25.4 6 137.5 132.6 9.52
A105 140-115/2 140X115X25,4X6,35X133 115 140 25.4 6 138 133 6.35
A105 140-118 140X118X26,5 118 140 26.5 6 139 136 5.1
A105 140-120 140X120X25X6,35 120 140 25 6 138 135 6.35
A105 140-123 140X123X26,5 123 140 26.5 5 139.4 136 7.2
A105 145-120 145X120X25,4X9,52 120 145 25.4 6 142.5 137.6 9.52
A105 150-125 150X125X25,4X9,5 125 150 25.4 6 147.5 142.6 9.5
A105 150-125/1 150X125X25,4X6,35 125 150 25.4 6 148 143 6.35
A105 150-128 150X128X26,5 128 150 26.5 6 149 146 5.1
A105 150-130 150X130X25,4X6,35 130 150 25.4 6 148.3 144.1 6.35
A105 150-133 150X133X26,5X7,2 133 150 26.5 5 150 146 7.2
A105 152,4-127 152,4X127X31,75 127 152.4 31.75 6 149.91 145 9.52
A105 152,4-127/1 152,4X127X31,75X6,35 127 152.4 31.75 6 149.91 145 6.35
A105 155-130 155X130X25,4 130 155 25.4 6 152.5 147.6 9.52
A105 160-130 160X130X25,4 130 160 25.4 6 157.5 153 6.35
A105 160-130/1 160X130X25,4X9,52 130 160 25.4 6 157.5 152.6 9.52
A105 160-135 160X135X25,4 135 160 25.4 6 157.5 152.6 9.52
A105 160-135/1 160X135X45 135 160 45 6 157.1 151.72 12.7
A105 160-135/2 160X135X32X10X154 135 160 32 6 158 154 10
A105 160-138 160X138X26,5X5,1 138 160 26.5 6 159 156 5.1
A105 160-140 160X140X25X6,35 140 160 25 6 158 155 6.35
A105 160-143 160X143X26,5 143 160 26.5 5 159.4 156 7.2
A105 165,1-139,7 165,1X139,7X31,75X6,35 139.7 165.1 31.75 6 162.6 157.82 6.35
A105 165-140 165X140X25,4 140 165 25.4 6 162.5 157.6 9.52
A105 165-143 165X143X26,5X5,25 143 165 26.5 6 163.5 161 5.25
A105 170-140 170X140X25,4 140 170 25.4 6 168 163 6.4
A105 170-145 170X145X25,4 145 170 25.4 6 167.1 161.72 12.7
A105 170-148 170X148X26,5 148 170 26.5 6 169 166 5.1
A105 175-150 175X150X25,4X12,7 150 175 25.4 6 173 166.72 12.7
A105 177,8-152,4 177,8X152,4X31,75 152.4 177.8 31.75 6 175.52 170.51 9.52
A105 177,8-152,4/1 177,8X152,4X31,75X6,35 152.4 177.8 31.75 6 175.52 170.52 6.35
A105 180-150 180X150X35,4 150 180 35.4 6 177.87 172.95 6.35
A105 180-155 180X155X25,4X12,7 155 180 25.4 6 177.1 171.72 12.7
A105 180-158 180X158X26,5 158 180 26.5 6 179 176 5.1
A105 180-163 180X163X26,5 163 180 26.5 5 179.4 176 7.2
A105 185-160 185X160X25,4X12,7 160 185 25.4 6 182.1 176.72 12.7
A105 190-165 190X165X25,4X12,7 165 190 25.4 6 187.05 181.72 12.7
A105 195-170 195X170X25,4X12,7 170 195 25.4 6 192.05 187.1 12.7
A105 200-170 200X170X35,4 170 200 35.4 6 198 193 6.35
A105 200-175 200X175X31,5X6,6 175 200 31.5 6 199 196 6.6
A105 200-175/1 200X175X25,4 175 200 25.4 6 197 191.62 12.7
A105 200-180 200X180X31,5 180 200 31.5 6 199.4 196 9.2
A105 203,2-171,45 203,2X171,45X38,10/8 171.45 203.2 38.1 6 201.17 195.09 8
A105 203,2-177,8 203,2X177,8X31,75/9,52 177.8 203.2 31.75 6 201.18 196.16 9.52
A105 210-185 210X185X25,4 185 210 25.4 6 207 201.62 12.7
A105 220-190 220X190X35,4 190 220 35.4 6 217.9 212.7 6.35
A105 220-190/1 220X190X35,4X6,35X213,5 190 220 35.4 6 217.9 213.5 6.35
A105 220-195 220X195X25,4X12,7 195 220 25.4 6 217 211.62 12.7
A105 220-200 220X200X31,5 200 220 31.5 6 219.4 216 9.2
A105 225-200 225X200X31,5 200 225 31.5 6 224 221 6.6
A105 230-205 230X205X25,4 205 230 25.4 6 221.62 221.62 12.7
A105 240-215 240X215X25,4X12,7 215 240 25.4 6 237 231.62 12.7
A105 250-220 250X220X35,4 220 250 35.4 6 247.85 242.9 6.35
A105 250-220/1 250X220X36X12,5 220 250 36 6 247 242 12.5
A105 250-225 250X225X25,4 225 250 25.4 6 247 241.62 12.7
A105 250-230 250X230X31,5 230 250 31.5 6 249.4 246 9.2
A105 280-250 280X250X36,4 250 280 36.4 6 278 273 10
A105 280-250/1 280X250X35,4X9,52 250 280 35.4 6 277.85 272.9 9.52
A105 320-290 320X290X36X12,5 290 320 36 6 317 312 12.5

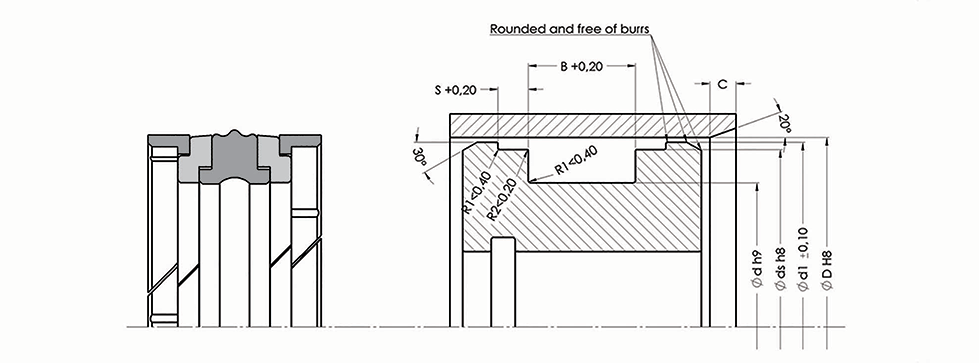

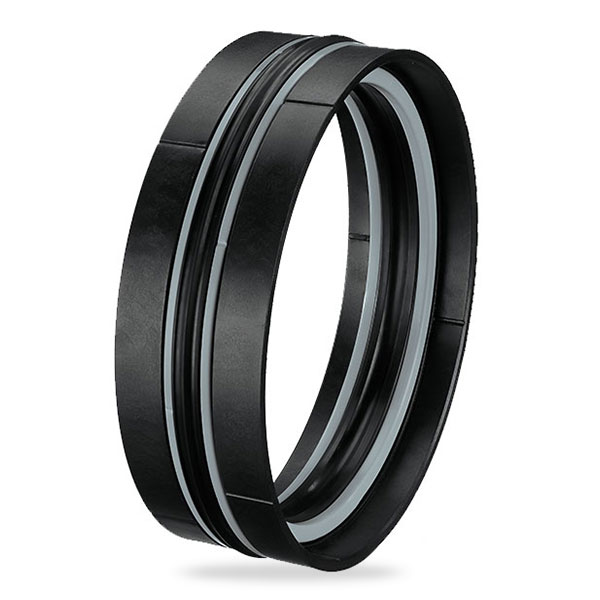

مجموعه های A105 Compact کاربرد بسیار رایجی دارند، به عنوان ابزار آب بندی دو طرفه در پیستون سیلندرهای هیدرولیک استفاده می شود. به دلیل طراحی 5 تکه آن به راحتی می توان آن را مونتاژ کرد.



داده های تکنیکی
فشار عملیاتی 400 بار
دمای عملیاتی -30/+105 درجه سانتیگراد
سرعت لغزش 0.5 متر بر ثانیه
مواد 80 NBR/TPE/POM+شیشه فیبر
نوع سیال روغن های معدنی
زبری سطح
  ra Rmax
سطح دینامیک ≤0.3 میکرومتر ≤3.0 میکرومتر
قطر کانال ≤1.8 میکرومتر ≤10.0 میکرومتر
سطوح جانبی ≤3.2 میکرومتر ≤16.0 میکرومتر
